Highland Ridge RV Mesa Ridge S-Lite Travel Trailer RVs For Sale

Previous
Next
1 of 11

The Highland Ridge RV Mesa Ridge S-Lite travel trailers are great for families or couples who are looking for a lightweight unit to tow! They may be light in weight, but they will still hold up to whatever adventure you throw their way with the Tuffshell walls, a thermal seal, and a PVC roofing membrane making it one of the strongest roofs in the business!



There is a variety of space-maximizing floorplans to choose from with many convenient features included like a mandatory Customer Convenience package. An oversized pass-through storage area comes with motion lighting so you can easily see all of your items at night. A laundry chute in the bedroom keeps your dirty clothes in one place, and the residential vinyl flooring throughout is kid and pet friendly!



It will be easy to tow a Highland Ridge RV Mesa Ridge S-Lite travel trailer!

  • Mesa Ridge S-Lite ML212FB

    Mesa Ridge S-Lite ML212FB Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML212FB highlights: Front ... more about Mesa Ridge S-Lite ML212FB

    Specifications

    Sleeps 3
    Slides 1
    Length 23 ft 8 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 410 lbs
    Gross Weight 6400 lbs
    Dry Weight 4820 lbs
    Cargo Weight 1580 lbs
    Fresh Water Capacity 51 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size 14"
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 12' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Mesa Ridge S-Lite ML241BH

    Mesa Ridge S-Lite ML241BH Floorplan Image

    Take a Virtual Tour

    Highland Ridge Mesa Ridge S-Lite travel trailer ML241BH highlights: Bunk Beds ... more about Mesa Ridge S-Lite ML241BH

    Specifications

    Sleeps 7
    Slides 1
    Length 29 ft 11 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 645 lbs
    Gross Weight 7400 lbs
    Dry Weight 5715 lbs
    Cargo Weight 1685 lbs
    Fresh Water Capacity 51 gals
    Grey Water Capacity 58 gals
    Black Water Capacity 29 gals
    Tire Size 14"
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 18' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Mesa Ridge S-Lite ML242RL

    Mesa Ridge S-Lite ML242RL Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML242RL highlights: Tri-Fold ... more about Mesa Ridge S-Lite ML242RL

    Specifications

    Sleeps 5
    Slides 1
    Length 29 ft 7 in
    Ext Width 8 ft 1 in
    Ext Height 10 ft 4 in
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 645 lbs
    Gross Weight 7000 lbs
    Dry Weight 5475 lbs
    Cargo Weight 1525 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 18' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Mesa Ridge S-Lite ML261BH

    Mesa Ridge S-Lite ML261BH Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML261BH highlights: Front ... more about Mesa Ridge S-Lite ML261BH

    Specifications

    Sleeps 9
    Slides 1
    Length 30 ft 10 in
    Ext Width 8 ft 1 in
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 755 lbs
    Gross Weight 7500 lbs
    Dry Weight 5855 lbs
    Cargo Weight 1645 lbs
    Fresh Water Capacity 51 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size 14"
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 20' 6" Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Mesa Ridge S-Lite ML262RL

    Mesa Ridge S-Lite ML262RL Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML262RL highlights: Front ... more about Mesa Ridge S-Lite ML262RL

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft 10 in
    Ext Width 8 ft 1 in
    Ext Height 10 ft 5 in
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 845 lbs
    Gross Weight 7250 lbs
    Dry Weight 5985 lbs
    Cargo Weight 1265 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 29 gals
    Black Water Capacity 29 gals
    Tire Size ST205/75R14'D
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 21' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Mesa Ridge S-Lite ML232MD

    Mesa Ridge S-Lite ML232MD Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML232MD highlights: Dual Entry ... more about Mesa Ridge S-Lite ML232MD

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Int Height 6 ft 9 in
    Interior Color Graystone
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 21' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

  • Mesa Ridge S-Lite ML252RB

    Mesa Ridge S-Lite ML252RB Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML252RB highlights: Dual Entry ... more about Mesa Ridge S-Lite ML252RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Int Height 6 ft 9 in
    Interior Color Graystone
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 20' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius

    Similar Floorplans

  • Mesa Ridge S-Lite ML281BH

    Mesa Ridge S-Lite ML281BH Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML262RL highlights: Front ... more about Mesa Ridge S-Lite ML281BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 10
    Slides 1
    Length 33 ft
    Ext Width 8 ft 1 in
    Ext Height 11 ft 3 in
    Int Height 6 ft 9 in
    Interior Color Graystone
    Hitch Weight 750 lbs
    Gross Weight 8250 lbs
    Dry Weight 6485 lbs
    Cargo Weight 1765 lbs
    Fresh Water Capacity 45 gals
    Grey Water Capacity 58 gals
    Black Water Capacity 29 gals
    Tire Size ST225/75R15'E
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 20' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Mesa Ridge S-Lite ML282RL

    Mesa Ridge S-Lite ML282RL Floorplan Image

    Highland Ridge Mesa Ridge S-Lite travel trailer ML282RL highlights: Front ... more about Mesa Ridge S-Lite ML282RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Int Height 6 ft 9 in
    Interior Color Graystone
    Available Beds Queen
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    AC BTU 15000 btu
    TV Info LR LED HDTV
    Awning Info 10' & 11' Power with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

Mesa Ridge S-Lite Features:

Standard Features (2022)



Exterior Equipment

  • 5/8" main floor decking
  • Door side spray port
  • Exterior grill hookup quick connect port
  • Flexible LP lines
  • Fully-walkable roof
  • In-frame battery rack
  • Magnetic baggage door catches
  • Marine grade exterior speakers (2)

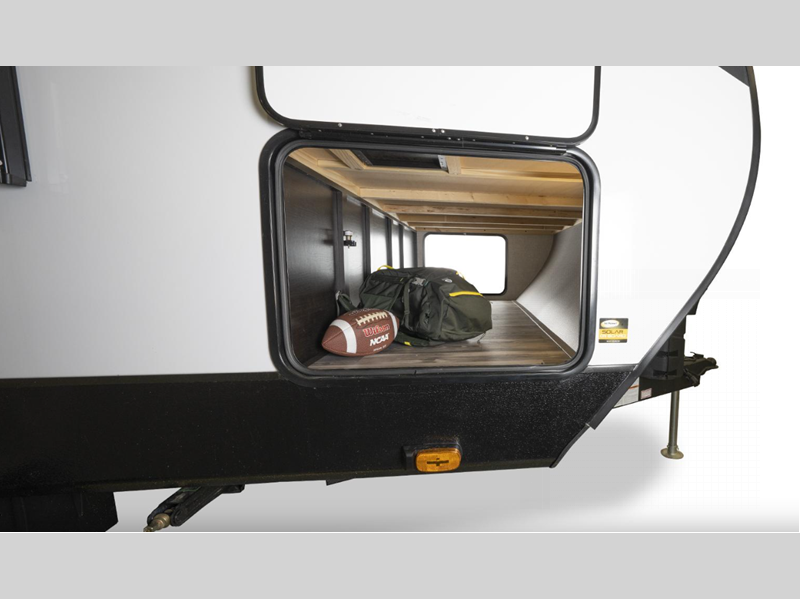

  • Oversized pass-through storage with motion lighting
  • PVC roofing membrane (lifetime limited warranty)
  • Rain guttering with molded drip spouts
  • Safety bumper with drain hose carrier and end caps
  • Self-adjusting electric brakes
  • Side camera prep marker lights
  • Solid swing-down entry steps
  • Thermal Seal - enclosed, insulated, and heated underbelly and fully insulated roof with a PVC roofing membrane
  • Tinted safety-glass windows throughout
  • TuffShell™ - vacuum bonded laminated construction, reinforced with heavy-duty fiberglass and welded aluminum frames

Interior Equipment

  • 60" X 80" queen bed with storage drawers below
  • 75 lb. ball bearing drawer guides
  • 81" interior height
  • Cable and satellite prep
  • Electrical outlets and USB ports in master bedroom
  • Flush floor slides with residential vinyl flooring
  • Hardwood cabinet doors
  • Kid and pet friendly – residential vinyl flooring throughout, vinyl furniture, no floor heat registers
  • Kitchen sink covers
  • Laundry chute in bedroom
  • LED interior lighting
  • Porcelain foot flush toilet
  • Range hood
  • Residential high-rise faucet with pull-down sprayer
  • Roller blackout night shades
  • Single basin stainless steel under-mount kitchen sink
  • Tri-fold sofa

Customer Convenience Package (Mandatory)

  • 15,000 BTU roof mounted A/C
  • 2-30 lb. LP bottles with cover
  • 3-burner range with 17" oven with LED lighting and flush mount glass cover
  • 8 cu. ft. refrigerator
  • AM/FM/HDMI/USB/AUX Bluetooth® sound bar stereo with indoor/outdoor zoned speakers
  • Bathroom skylight and roof vent
  • Bedspread
  • Dome style TV antennae with Wi-Fi prep
  • Enclosed exterior docking station with black tank flush
  • Entrance door with screen door, window and magnet door catch
  • EZ-store detachable cord
  • Fiberglass front cap with LED lighting and stoneguard protection
  • Foldable grab handle
  • Gas/electric DSI water heater
  • LED HDTV
  • Medicine cabinet
  • Microwave
  • Nitrogen filled radial tires with aluminum rims
  • Porcelain foot flush toilet
  • Power awning with LED lighting
  • Power tongue jack
  • Powered 12V bathroom vent
  • Pressed membrane countertops
  • Rear observation camera prep
  • Rear roof access ladder

Options

  • 50 amp service with 2nd A/C (282RL)
  • Electric stabilizer jacks
  • Free standing table with 2 chairs and bench (N/A 212FB, 232MD)
  • Free standing table with 4 chairs (N/A 212FB, 232MD)
  • Off-grid solar package - 12V TV, 180 watt panel, 30 amp controller
  • Theater seats ipo Tri-fold sofa (N/A 212FB, 241BH)
  • Wi-Fi router

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
